MUZISHARE X5 push-pull tube amplifier HIFI EXQUIS handmade scaffolding integrated lamp amp MZSX5

 Be fan

Be fan of our Facebook page and get $5.00 discount!

 Be fan

If you are not logged in to Facebook, please first log in and then refresh this page before clicking the Like button. Otherwise, you will not get your voucher.

MZSX5

New product

Muzishare

After manufacturer test, This amplifier is better than Jolida 302

More details

Warning: Last items in stock!

$714.00

$952.00

-25%

:
0-4

Technical parameters:

  • Rated output power: 15W + 15W (RMS triode working condition)
                                      35W + 35W (RMS ultra-linear working condition)
  • Harmonic distortion: 1% (1KHZ)  (Hifi exquis 1101017)
  • Frequency response: 10HZ ~ 50KHZ (-1.5DB)
  • Input Sensitivity: 200mV Input impedance: 100KΩ
  • SNR: 88DB
  • Output Impedance: 4Ω, 8Ω (Hifi exquis 1101017)
  • Net weight: 18.5kg  (Hifi exquis 1101017)
  • Package weight: 25kg
  • Power consumption: 230W (Hifi exquis 1101017)
  • Tube: Shuguang 12AX7×2 (they can be replaced by 12AX7EH,ECC83,
                                                E83CC,CV4004,ECC803,5751)                                                Shuguang12AU7×2 (12AU7EH,ECC82,5814,6189, CV4003)
             Shuguang EL34×4 ( 6CA7) (Hifi exquis 1101017)
  • Dimension:350×315×185mm
  • Voltage:110/120v or 220/235v±5%(50Hz) (Hifi exquis 1101017)
  • Working conditions: Temperature: 0 ºC~ 40 ºC Humidity: 20% to 80%
  • Storage conditions: Temperature: -20 ºC ~ 70 ºC Humidity: 20% to 90%
0-50-60-30-7
Features:

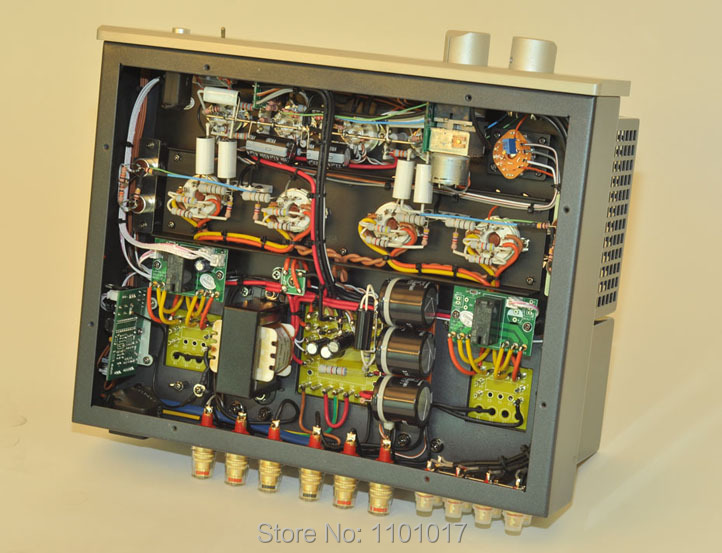

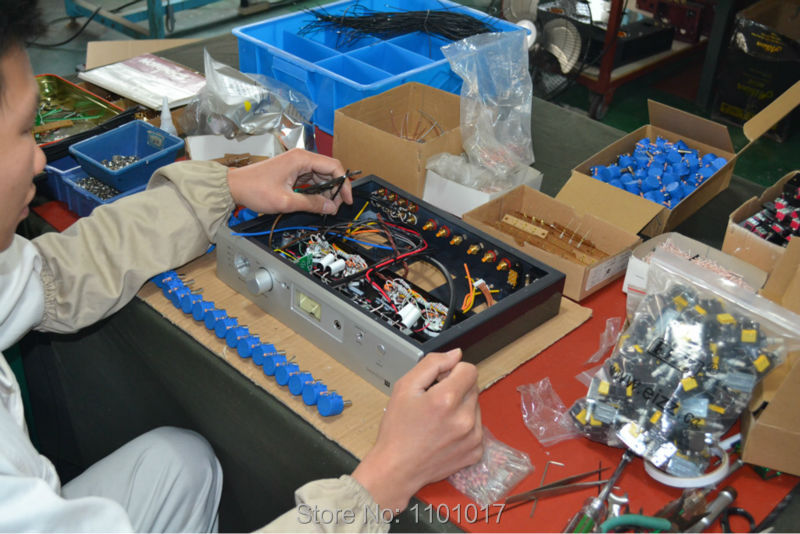

  • Handmade, using scaffolding welding (Hifi exquis 1101017)

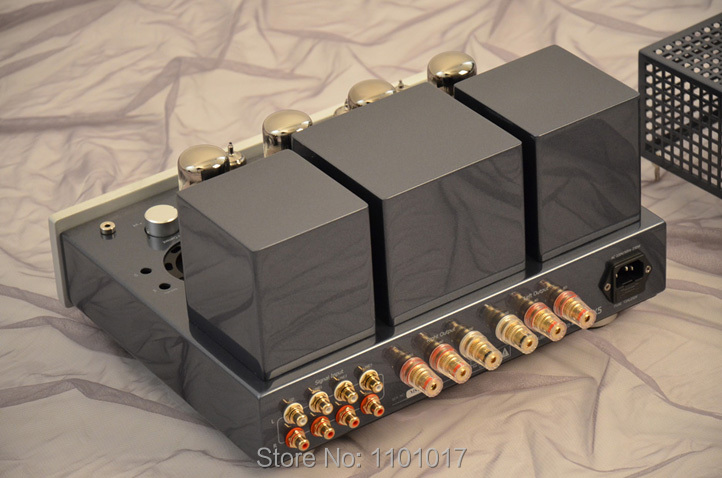

  • using two high quality and wide frequency response EI output transformer
  • Using a customize EI power transformer  (Hifi exquis 1101017)

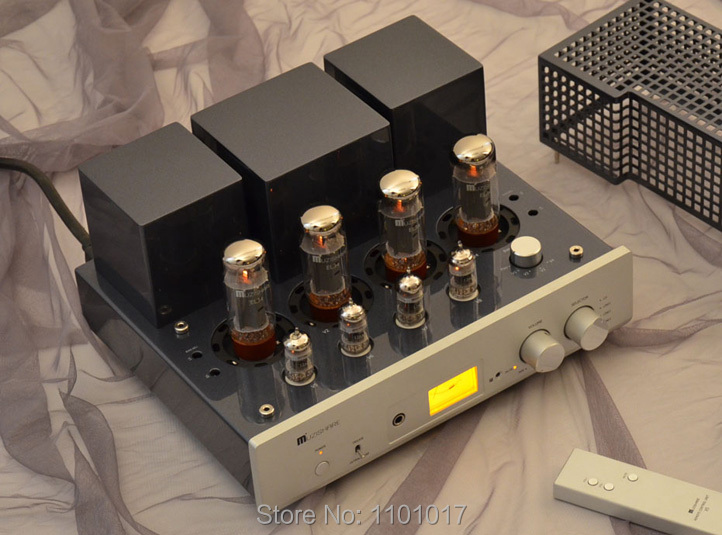

  • Use 2X12AX7 and 2X12AU7 as pre-amp tube, use 4XEL34 as push pull power amp,providing the triode connnection and ultra-linear connection modes.The triode connection mode is more suitable for the voice and the sound is more soft, delicat as well as nature. The ultra-linear connection is suitable for the big scence, the sound is open and lively. (Hifi exquis 1101017)
  • There is a power tube current control button and an electric meter dial.
  • Infrared remote control function (Hifi exquis 1101017)
  • Power Mute delay function
  • Selection of Japanese high-grade ALPS motor potentiometer.(Hifi exquis 1101017)

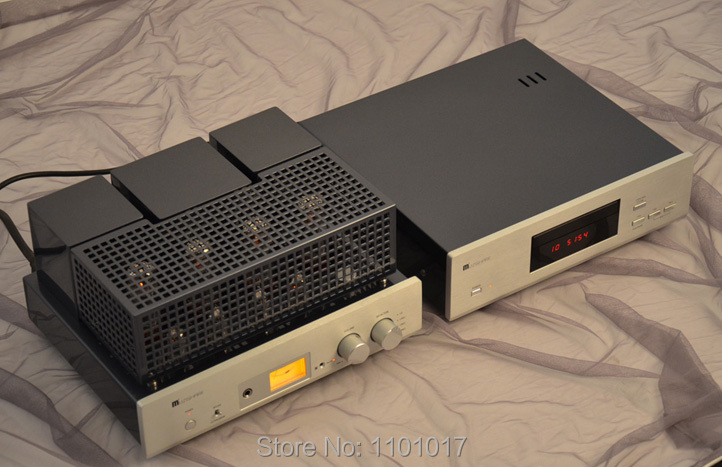

  • Easy installation of the plug-type vacuum tube shield

1-10-40-71-2

This product passe a strict techinical testing, guaranting a good performance.



2-13-24-14-2

Muzishare X5 User Manual EN

Muzishare X5 English User Manual

Download (725.47k)
