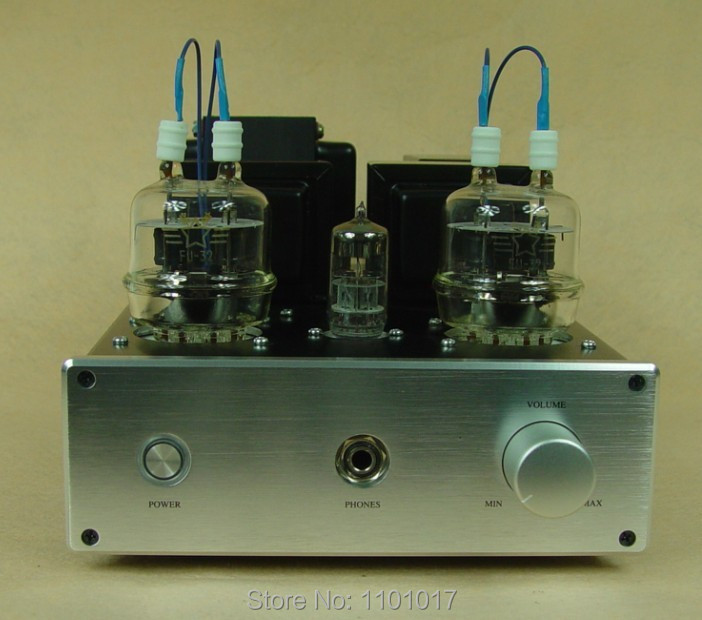

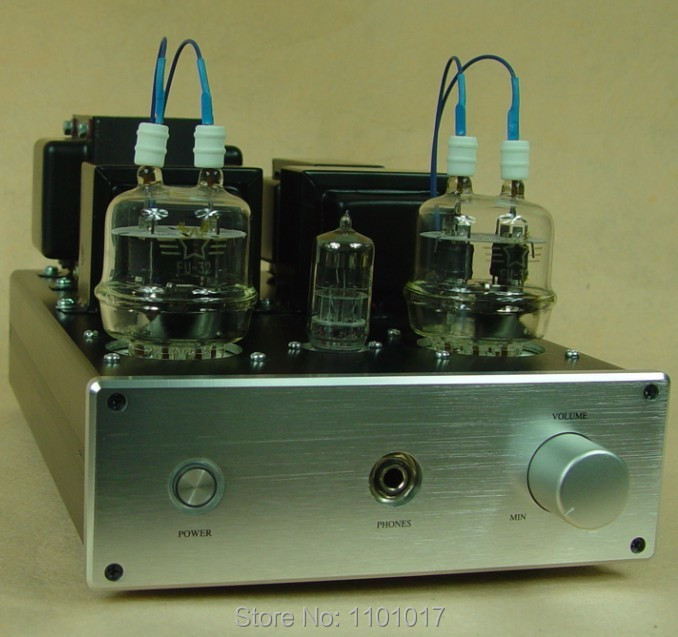

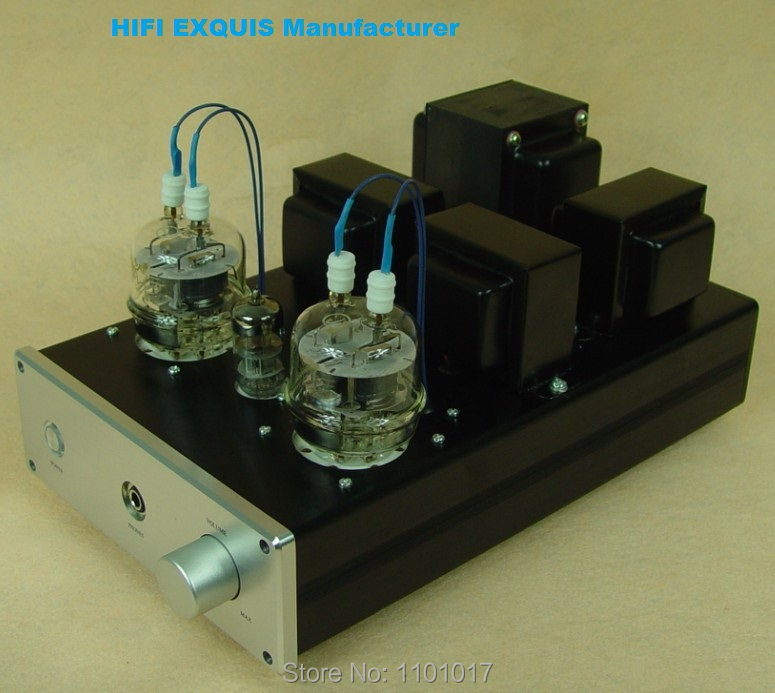

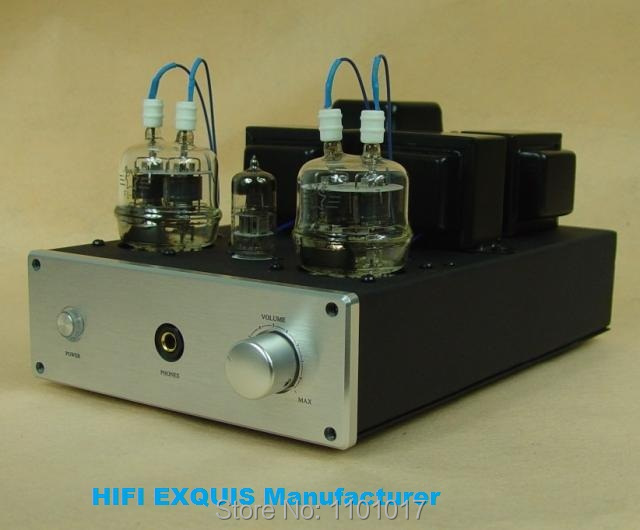

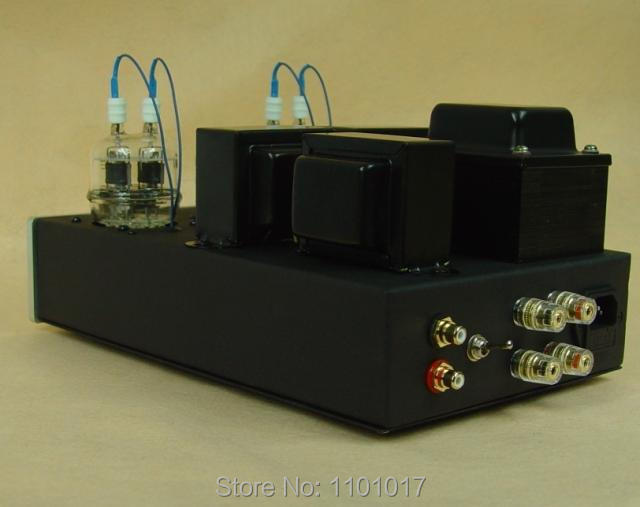

JBH 6N2 FU32 tube amplifier HIFI EXQUIS with headphone transformer output Handmade scaffolding lamp amp luxury version

 Be fan

Be fan of our Facebook page and get $5.00 discount!

 Be fan

If you are not logged in to Facebook, please first log in and then refresh this page before clicking the Like button. Otherwise, you will not get your voucher.

New product

JBH

$170.85

$201.00

-15%

  • With all tubes
  • Without tubes

3

Parameters:(HIFI EXQUIS co, limited)

  • Input: 1 group RCA input
  • Tubes: BeiJing's 6n2x1, BeiJing's FU32x2
  • Output switch : switch between 8ohm output and headphone output, 4ohms output section don't need use switch.
  • Output:(HIFI EXQUIS co, limited)
  •    Back panel: 4ohms directly output OR 8ohms output   4w x 2
  •    Front 6.35mm standard headphone output for 32-600ohm
  • Frequency response: 26-38KHz ± 2db
  • Input sensitivity: 1.5-2v(HIFI EXQUIS co, limited)
  • Output signal/noise: > 118dB(A)
  • Output total harmonic distortion: <0.008% 10Hz to 20kHz
  • Headphone maximum power: about 1w
  • Color: brushed stainless steel surface qualities
  • Weight: about 10kg
  • Size: 19 * 6 * 30cm, the total height is 16cm contains tubes
  • Packing size 40 * 35 * 25cm
  • Input voltage: 110/120v or 220/230v

Features:

  • Using pure aluminum front panel
  • 1.2mm iron CNC punching chassis(HIFI EXQUIS co, limited)
  • Use of all AC filament lighting, with 102DB headphones to listen, not a little hum noise
  • Using 6n2 voltage tube to driven parallel fu32 class A circuit, output 4w + 4w, with impedance requirements 4-8 ohm sensitivity more than 90db's 6.5'' speakers, headphones 32-600 Europe (about 1w)
  • Volume potentiometer Japan ALPS 16 type potentiometer, ensure clear positioning and sound's balance(HIFI EXQUIS co, limited)
  • Employs a precision of up to 1% metal film resistors
  • High level BC capacitors and oil coupling capacitors
  • Power transformer use 86 * 50 H360 tablets(HIFI EXQUIS co, limited)
  • Inductor uses 66 * 32 z11 0.35 annealed films
  • Output transformer 66 * 32 z11 0.35
  • RCA Cinch for copper gold-plated,
  • Crystal input terminal using the terminal,(HIFI EXQUIS co, limited)
  • Use a special output transformer for headphone output,  perfect protect your high level equipement, output transformer no-load protection
  • Former senior designer fever predecessors provide a prototype circuit, then a senior fever seniors improvement of the circuit, put on a prototype, which took six months to select elements tune sound improvement
  • Prefect match with Sennheis  er headphones like: HD600 HD650 HD700 HD800
        and other professional headphone
    (HIFI EXQUIS co, limited)
  • Compare with RP030 high level headphone amplifier

Sound:
Overall all frequency are balanced, with the full tube flavor characteristics, the full sense and intensity of low frequency, IF is warm mellow, it has a special advantage in high-frequency, high-frequency structured throughout, with great accuracy, but did not split at very high frequency, sound details, stretch and bright high-frequency controlled well! This paragraph sound performance overall
(HIFI EXQUIS co, limited)

The Luxury version also improved dynamic range, enhanced sense of space
