TUOLIHAO Q5 Double Full Range Speaker HIFI EXQUIS Monitor bookshelf

 Be fan

Be fan of our Facebook page and get $5.00 discount!

 Be fan

If you are not logged in to Facebook, please first log in and then refresh this page before clicking the Like button. Otherwise, you will not get your voucher.

Q5

New product

Tuolihao

Steel Q5 full-range speaker is undoubtedly a milestone, higher sensitivity, better sense of space, better sense of departure from the box, higher clarity

More details

$353.16

$392.40

-10%

Steel Q5 full-range speaker is undoubtedly a milestone, higher sensitivity, better sense of space, better sense of departure from the box, higher clarity
Since the beginning of this research and development project, the factory a number of old sound R&D designer work for one year and six months, repeated revision, calibration, matching, the speaker tuned more than 50 times, and now offering the perfect works: King of the sound, Acura full frequency.
When you listen to the beginning of Q5, you will realize that music can be so appreciated. At the same level, you are hard to find other opponents, in her body, you will feel delicate, no dye sound , sound is out of box, the sound field open natural and full of emotional voice.

0-3

0-4
Technical parameters:
  • Power range: 30 - 50 W

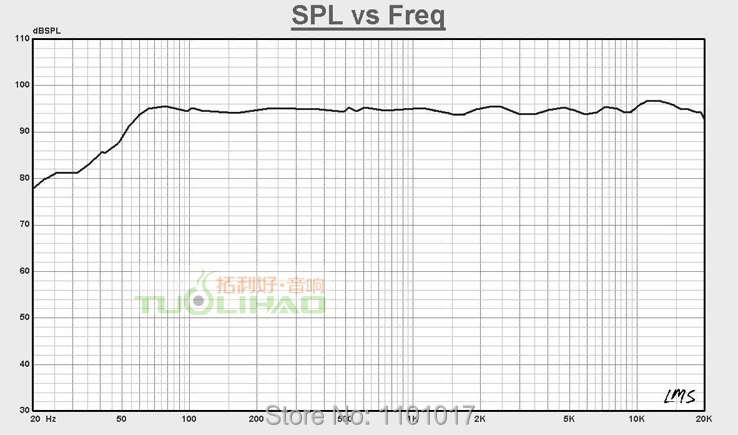

  • Frequency range: 60-20KHZ (Hifi exquis 1101017)
  • Speaker driver disc: Pure paper
  • Speaker driver size: 4 inch = 10.16cm

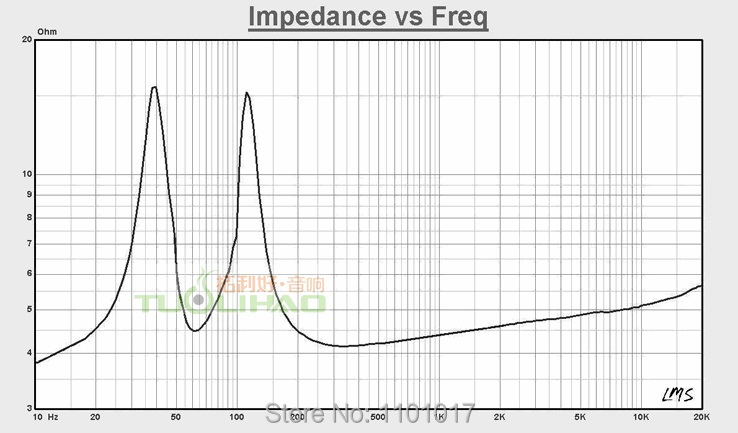

  • Impedance: 4ohms - 8ohms
  • Sensitivity: 95 dB (Hifi exquis 1101017)
  • Case Material: thick high-density board, equipped with reinforcing plate. Top, rear, bottom, stick horse eye veneer imports difficult matte paint. The left and right side panel and matt black paint, the perception is very good. (Hifi exquis 1101017)
  • Box size:  Two side's largest width: 235MM, Rear plate width 130MM, Height 295MM, Depth 250MM.(Hifi exquis 1101017)
  • Net Weight: 15 kg
  • Package Weight: about 20 kg double strong package

​Features:

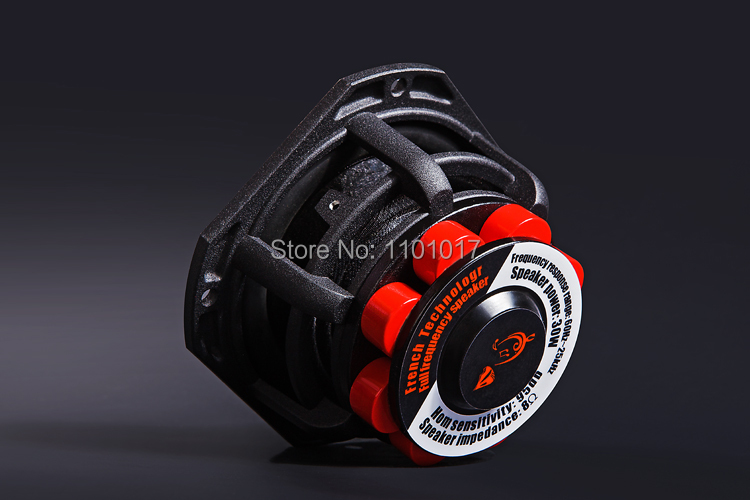

  • Special diameter 35.5MM of aluminum flat aluminum flat wire voice coil, this material is very difficult to process, generally is used to make expensive speakers. This rare material can ensure high power, high-fidelity, high sensitivity. (Hifi exquis 1101017)
  • Aluminum chassis: the stent of this full-range speaker is made of a thicker aluminum, that can play a very stabilizing effect. (Hifi exquis 1101017)
  • Sound field weapon: full-range speaker unit finest horn cup-type sound, pure wool pulp manufacturing. This is her biggest bright spot, her voice low cup Dianfan traditional flat shape, and the use of horn-type sound cup, the sound field research in one step. It has not only the detail's advantages of small but also the strong voice of the big speaker.
  • Q5 all Frequency speaker panel and side panel radian and the slope is calculated, making the whole high frequency horn, medium and the bass close together, spectrum cohesion is more perfect and fluent. The box is improved in the way of science, including reasonable supporting structure, used to reduce the panel resonance, we select first-class professional sound-absorbing material, to avoid the generation of standing wave, and dispersed the internal reflection, all of these are, is to reduce the sound dyed at the same time, also can improve the definition of the music.(Hifi exquis 1101017)
1-1

1-3

1-1

2-12-2

0-1

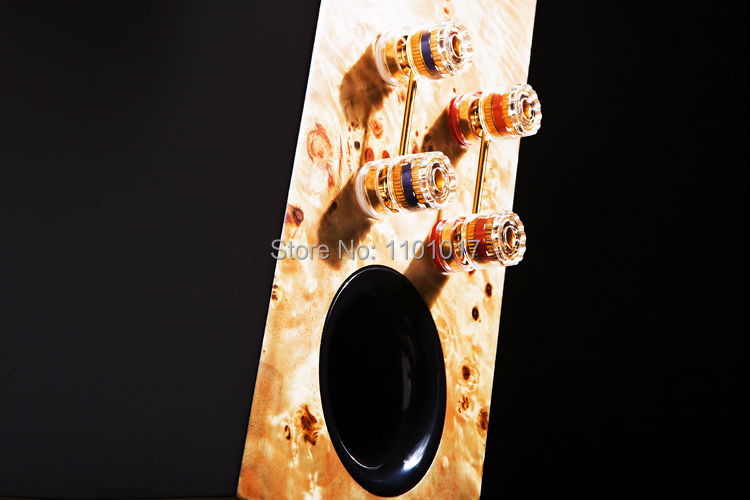

Terminals using the most advanced pure copper crystal head posts, contact welding easy, excellent transmission performance, permanent use is not oxidized. In parallel with the "gilded bridge" more use of copper strip and then plated 24K gold, two full-range speaker ensure synchronization pronunciation:
3-1

3-2
